1:35 SANY Roadheader Scale Model
A coal mining equipment model that brings a recognisable machine layout to the tabletop. Explore its working features and visible construction as a reference for your own OEM model brief.
Discuss Your Model ProjectSANY Roadheader from Four Angles
Explore the SANY roadheader scale model's cutting head, gathering apron, operator station and rear equipment layout.

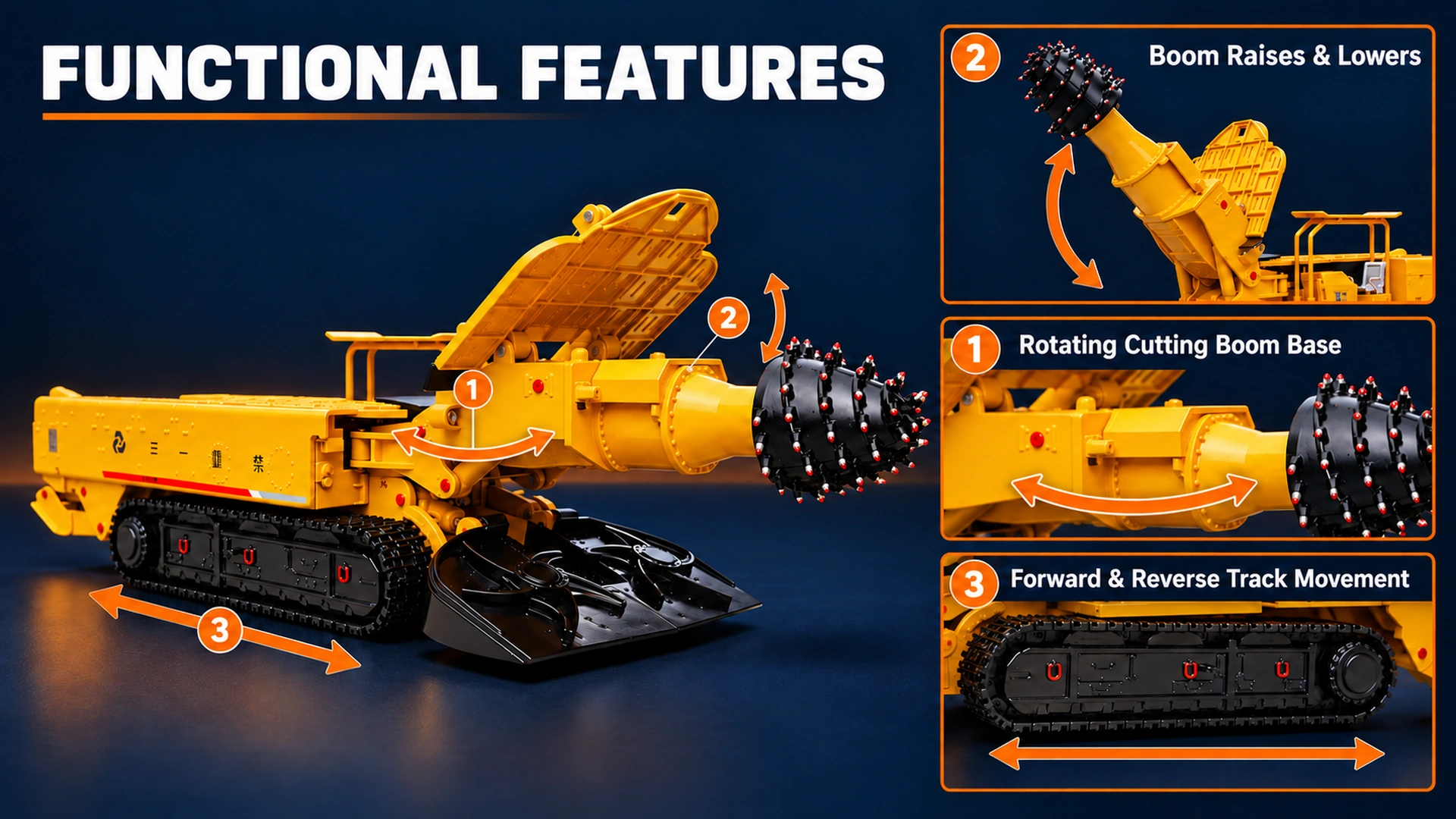

Three Movements to Demonstrate
The confirmed functions let viewers position the cutting assembly and move the model along a display surface.
Rotating Cutting Boom Base
The cutting boom base rotates to change the position of the cutting assembly.
Boom Raises & Lowers
The cutting boom pivots up and down for different display positions.
Forward & Reverse Track Movement
The crawler tracks allow the model to move forwards and backwards.
Engineering & Details
Compare the visible cutting picks, crawler links, rear conveyor and textured deck in one engineering presentation. These exterior features define the appearance of this mining machinery scale model.
OEM Development Process
For custom mining equipment models, each approval stage establishes the reference for the next step.
Prototype Approval
Convert editable equipment 3D data into model-ready geometry, then build a prototype to confirm proportions, appearance, structure and functions. Resolve structural changes before prototype approval and tooling.
Approve the Sample
Develop tooling to match the agreed material and production route. Review the sample's component fit, finish, decoration and movement, then establish an approved reference for production.
Control the Finished Result
Follow the approved manufacturing, finishing and assembly sequence. Check appearance and confirmed functions against the sample, then secure the models in the agreed packaging before shipment.
Checks That Guide Consistency
A quality plan for an OEM roadheader model should cover visible component fit, decoration, movement and protection during handling.
Illustrative composite based on factory photographs; the models and faces have been edited. This is not a production record for this model.
Component Fit
Inspect the boom mounting area, canopy and conveyor connections for visible damage, deformation or poor fit.
Finish and Graphics
Compare colour, surface finish and printed marking positions with the approved sample. Check for visible marks and residue.
Function and Assembly
Check cutting boom base rotation, up-and-down boom movement and forward/reverse track movement, along with loose or missing parts.
Packaging Protection
Review model restraint and protection around cutting picks, the boom and canopy. Confirm packing consistency with the agreed arrangement.
Business Applications
A coal mining equipment model can support physical product presentations where access to the full-size machine is limited.
Dealer Presentations
The visible operator station, cutting assembly and rear conveyor give sales teams a physical reference when introducing the machine layout.
Trade Show Displays
A mining equipment model for trade show displays offers a tabletop way to present equipment that cannot be brought into the exhibition space.
Brand Collections
Recognisable equipment silhouettes and visible branding can form part of a manufacturer or dealer collection alongside other machinery models.
Need a Model of Your Own Equipment?
Planning an OEM scale model project? Use this SANY roadheader scale model as a reference, then share your equipment dimensions and the requirements below so we can assess the scope for a quotation. Editable 3D data is needed when development starts; it is not required for an initial quotation.
