Custom 1:50 Keestrack B5E Screening Machine Scale Model
This case study presents a high-precision 1:50 Keestrack B5E screening machine scale model, developed for construction machinery branding, dealer display, exhibitions, and promotional gifts.
The model reproduces the real machine’s movable conveyor systems, hopper panels, crawler chassis, handrails, linkage structure, and compact mobile screening equipment design.

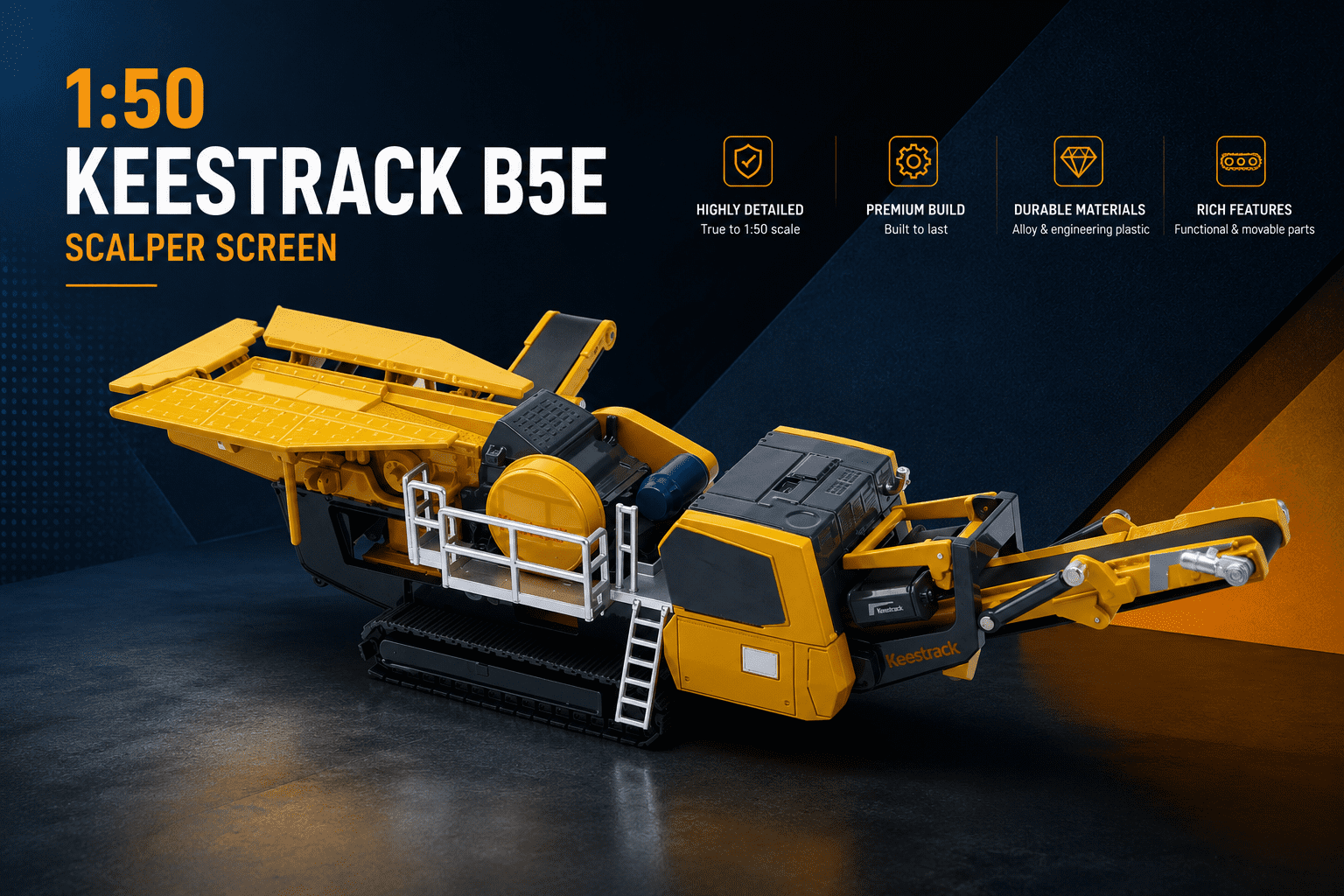

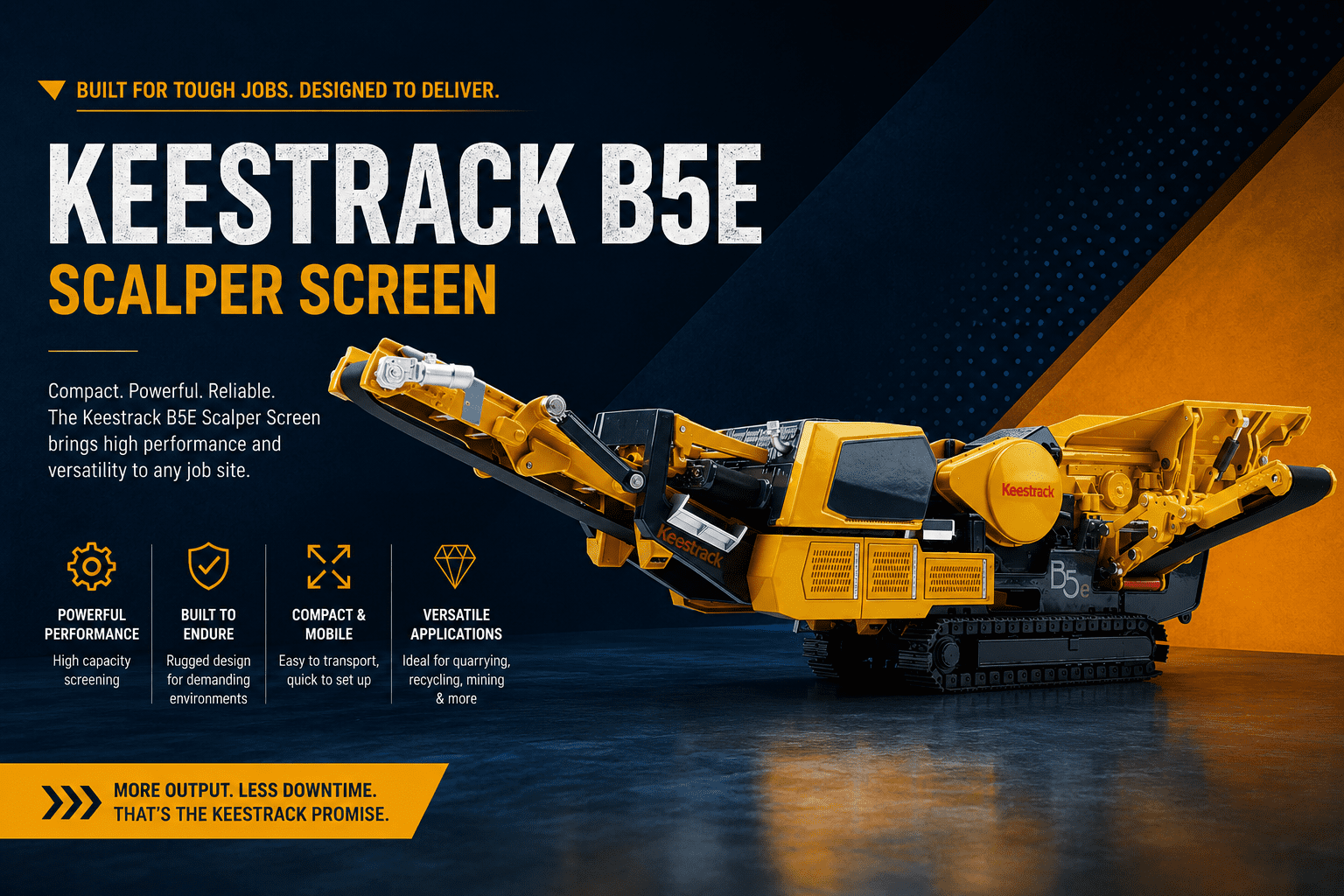

Realistic Screening Machine Model From Every Angle
Selected product views highlight the model’s proportions, surface finish, color matching, and display quality.

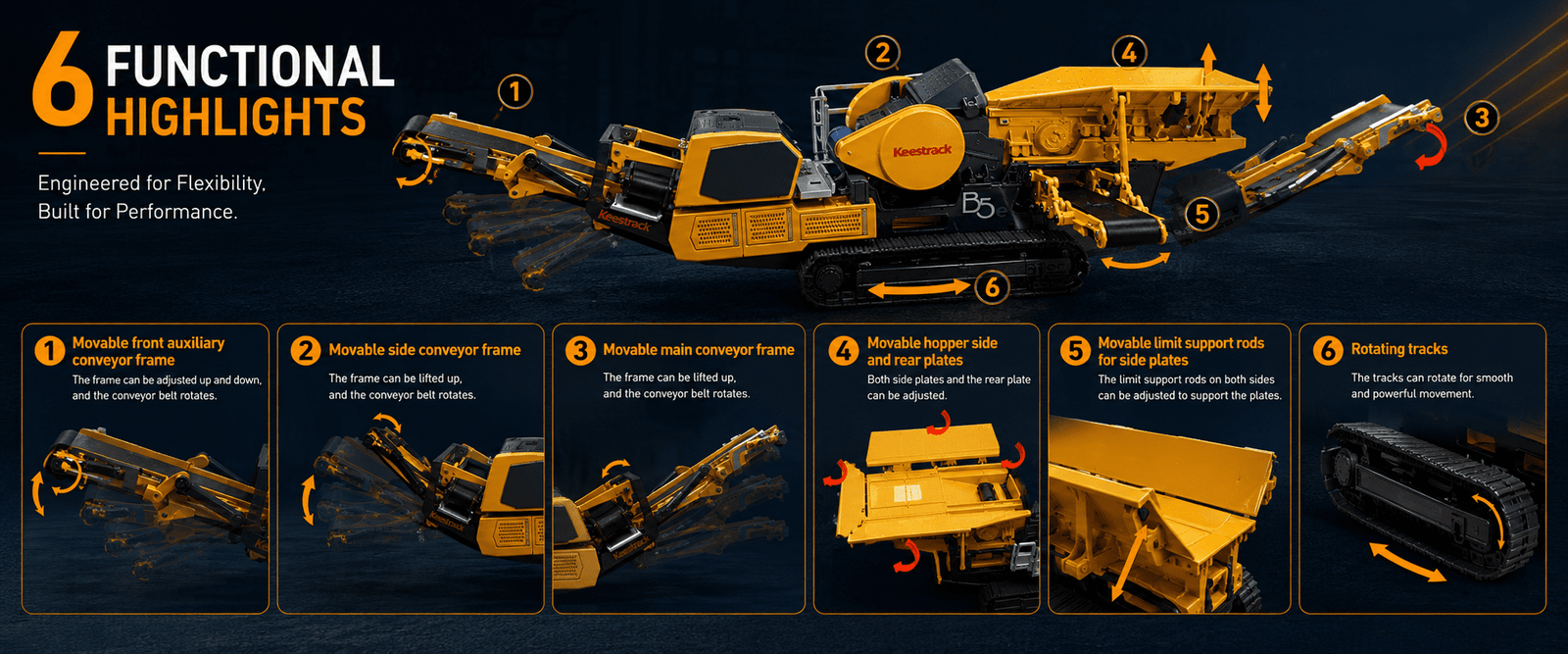

More Than A Static Scale Model
This custom mobile screening machine model includes multiple movable parts to demonstrate the real equipment’s working structure.
Movable Conveyor Frames
Front, side, and auxiliary conveyor frames can be adjusted.
Rotating Conveyor Belts
Belts are designed to rotate smoothly for better realism.
Opening Hopper Panels
Side and rear hopper plates can be opened and positioned.
Support Rod Details
Movable rods support the side plates and improve display value.
Rotating Tracks
Crawler tracks reproduce the mobile machine structure.
Precision Details That Make The Model Look Real
Each visible structure is designed to support realistic display, long-term durability, and OEM brand presentation.

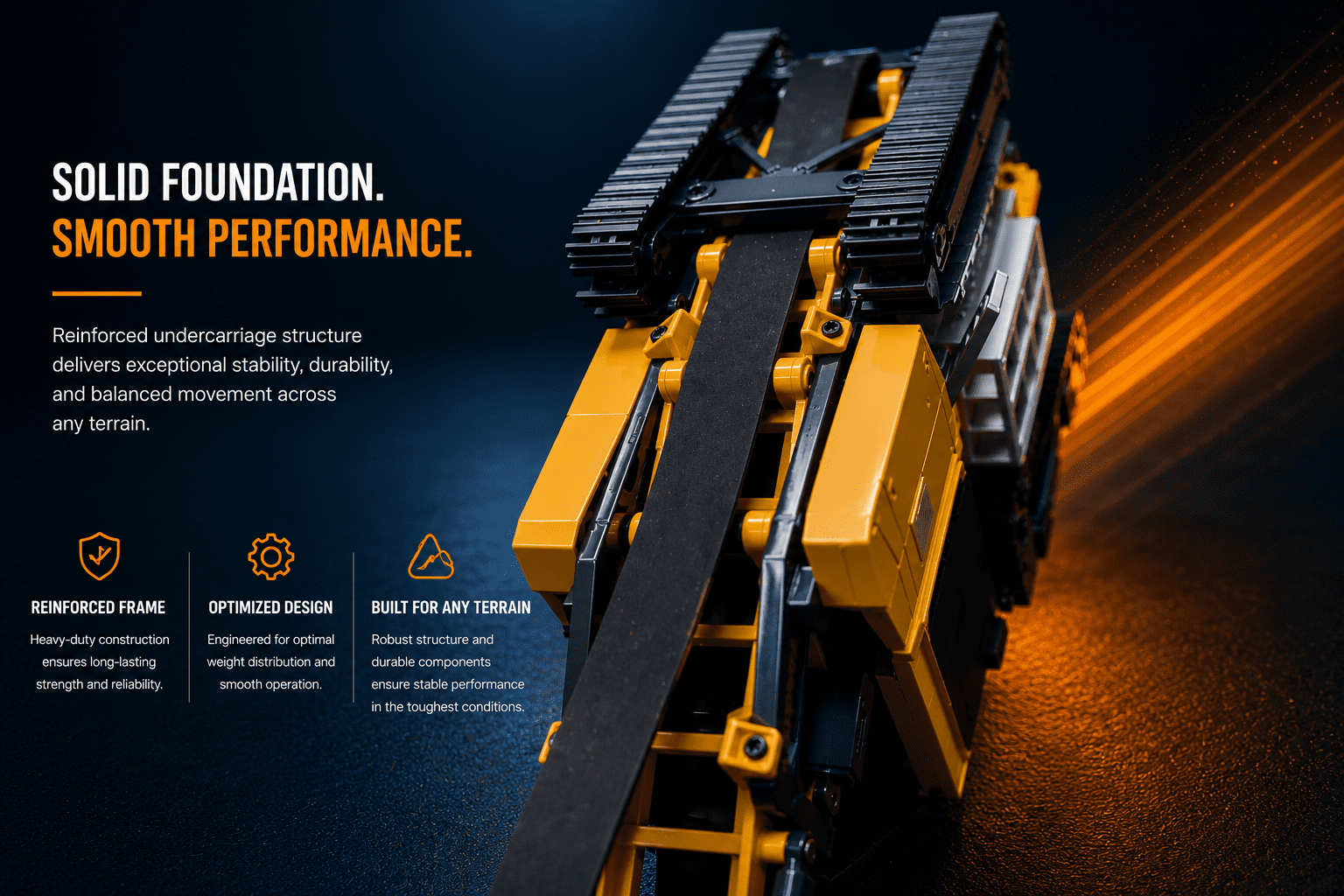

Chassis Structure
Reinforced undercarriage structure with stable proportions and realistic mechanical layout.

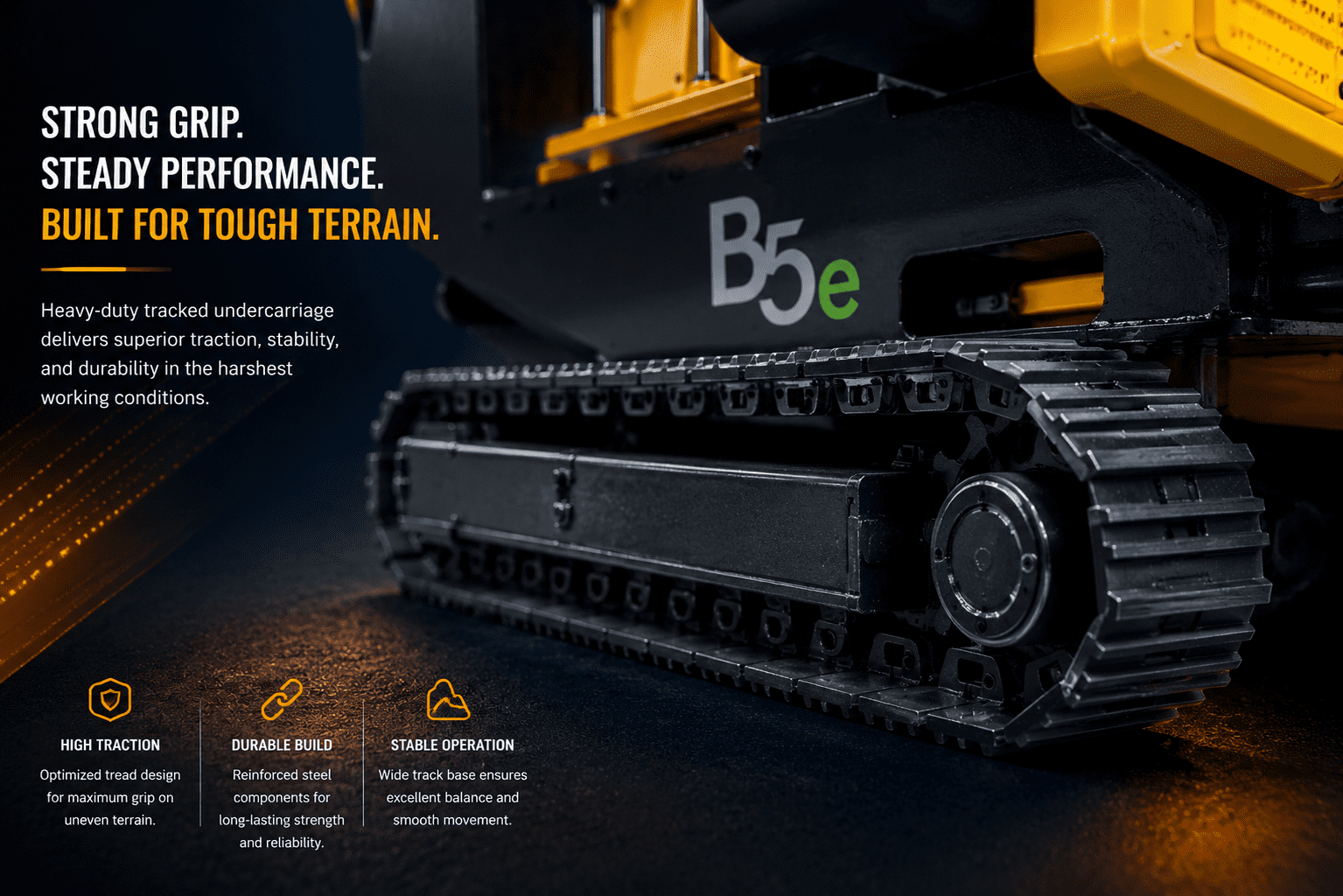

Crawler Track Detail
Detailed track system designed for strong visual impact and realistic equipment display.

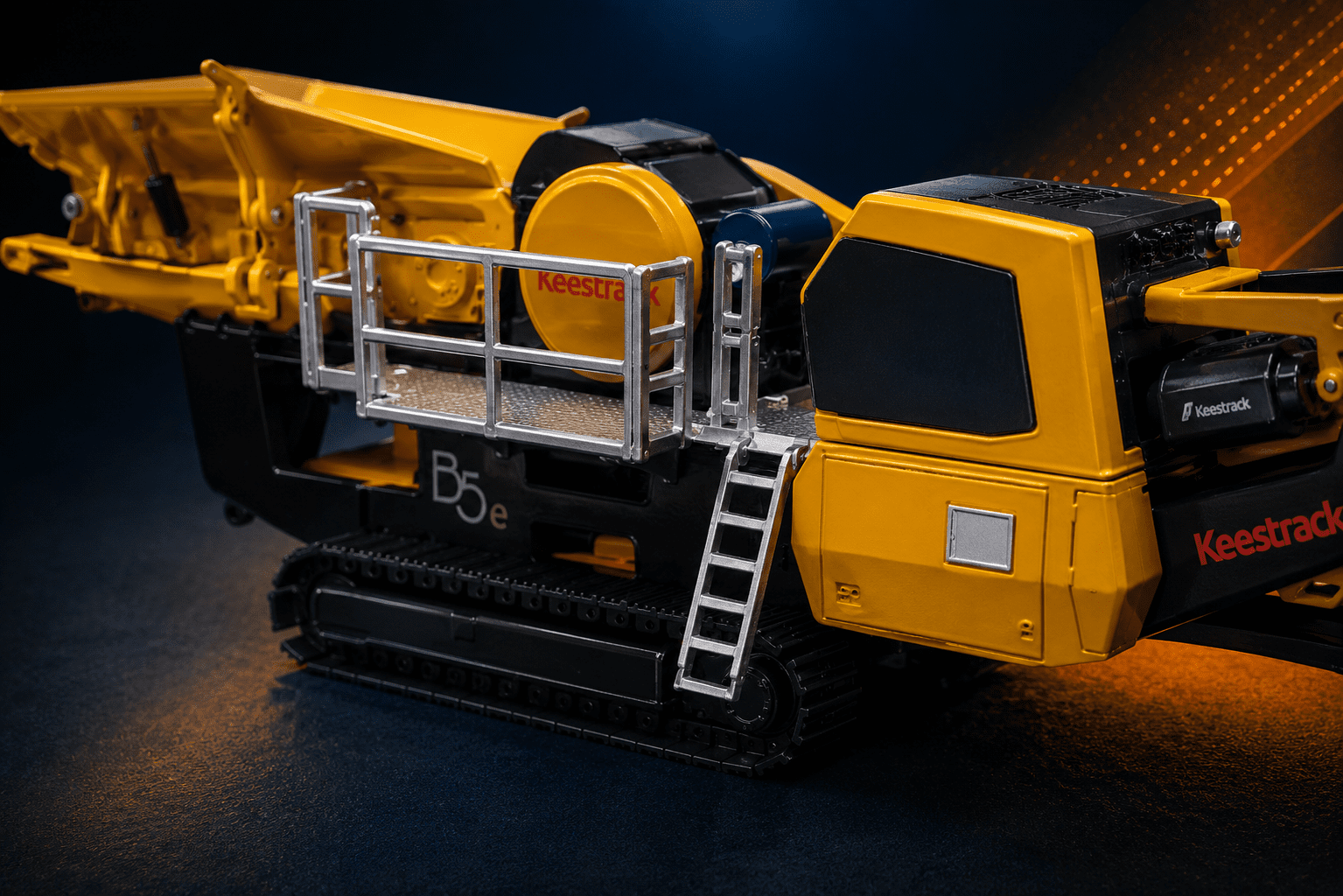

Handrail & Platform
Fine handrail details improve realism and highlight the model’s delicate structure.

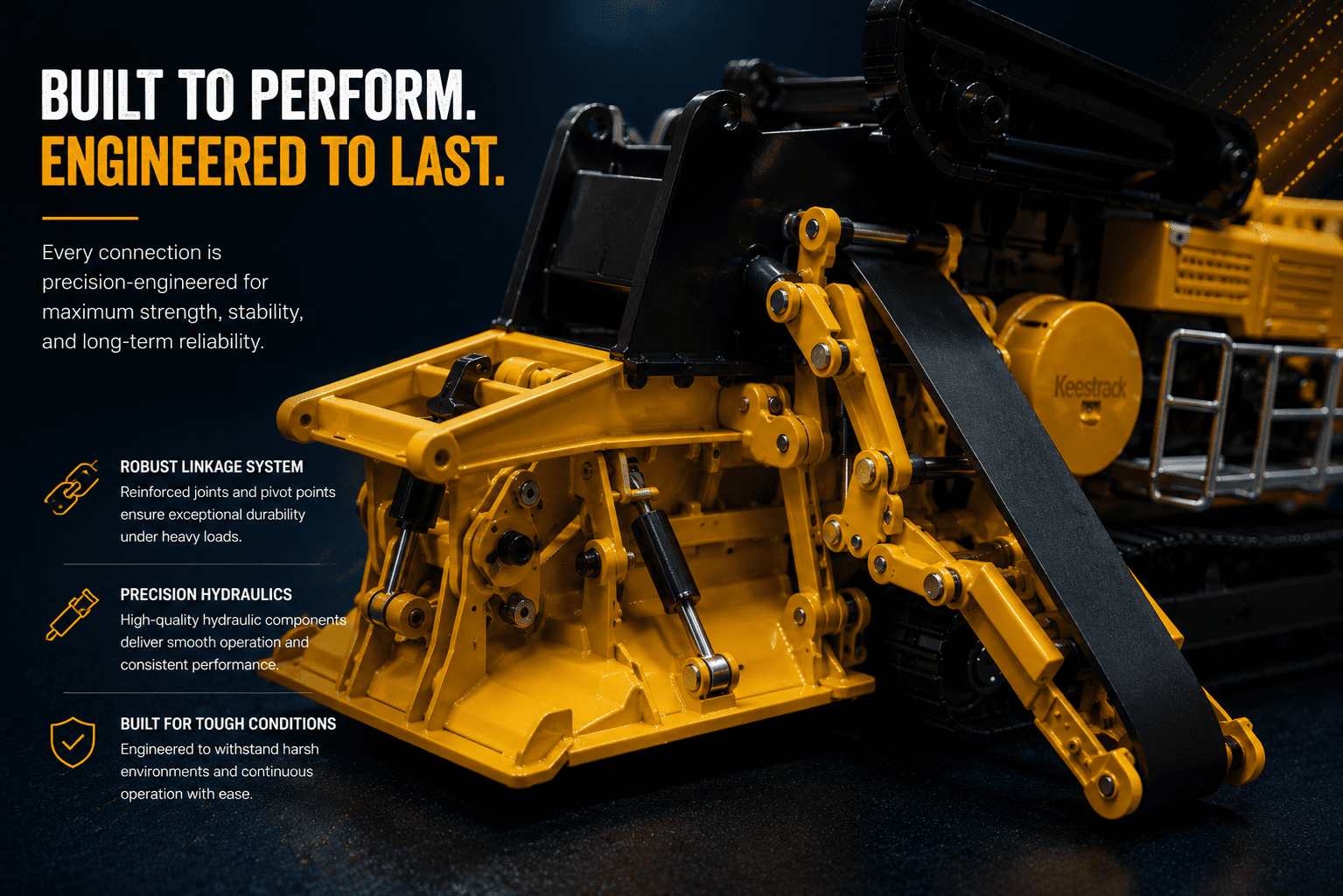

Linkage System
Functional joints, support arms, and connection points are carefully reproduced.

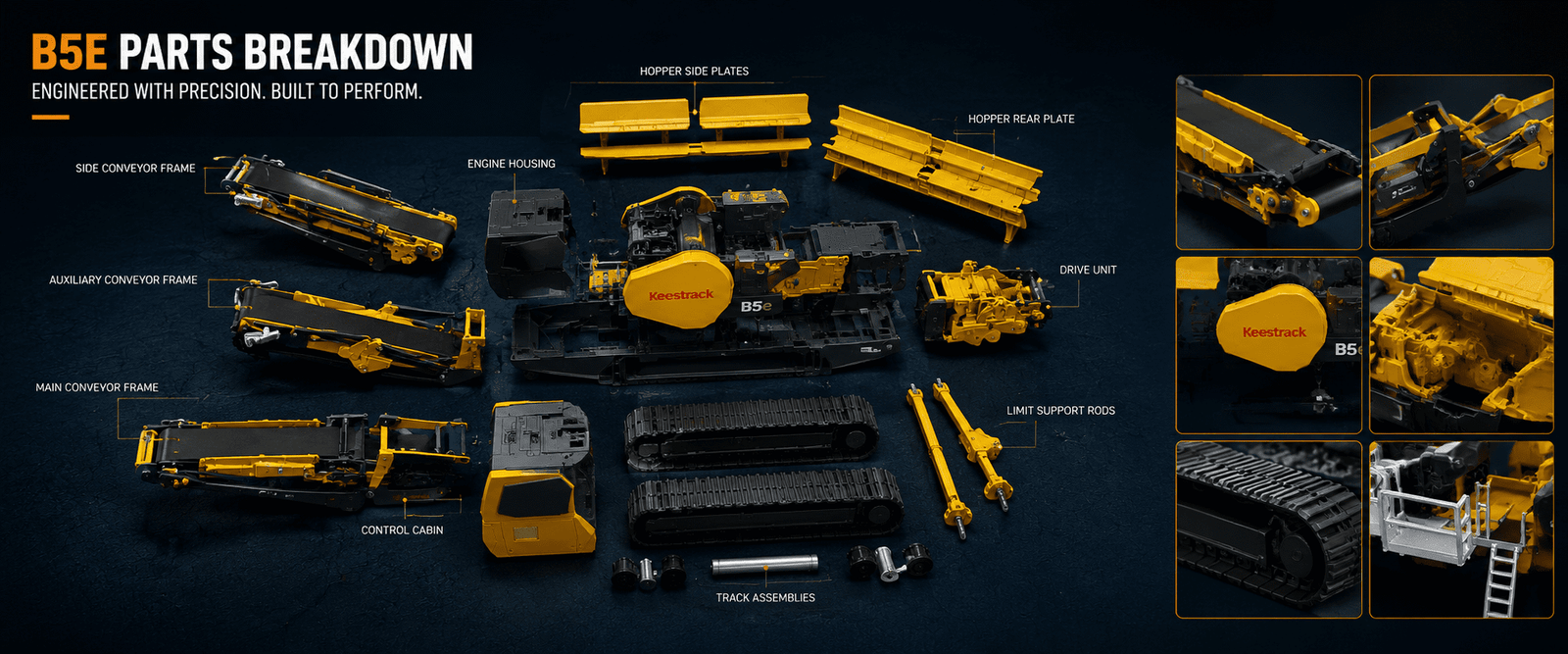

Complex Structure, Precisely Assembled
The exploded parts view shows how the custom Keestrack B5E scale model is engineered from multiple independent components.
This custom screening equipment scale model includes hopper side plates, rear plate, conveyor frames, engine housing, cabin structure, crawler undercarriage, handrails, ladders, rods, and linkage assemblies. Each part is designed separately before assembly to improve accuracy, production consistency, and long-term durability.
- Hopper side plates and rear plate
- Main conveyor and auxiliary conveyor frames
- Engine housing and cabin structure
- Crawler undercarriage assemblies
- Handrails, ladders, rods, and linkage parts
- Movable support and connection structures

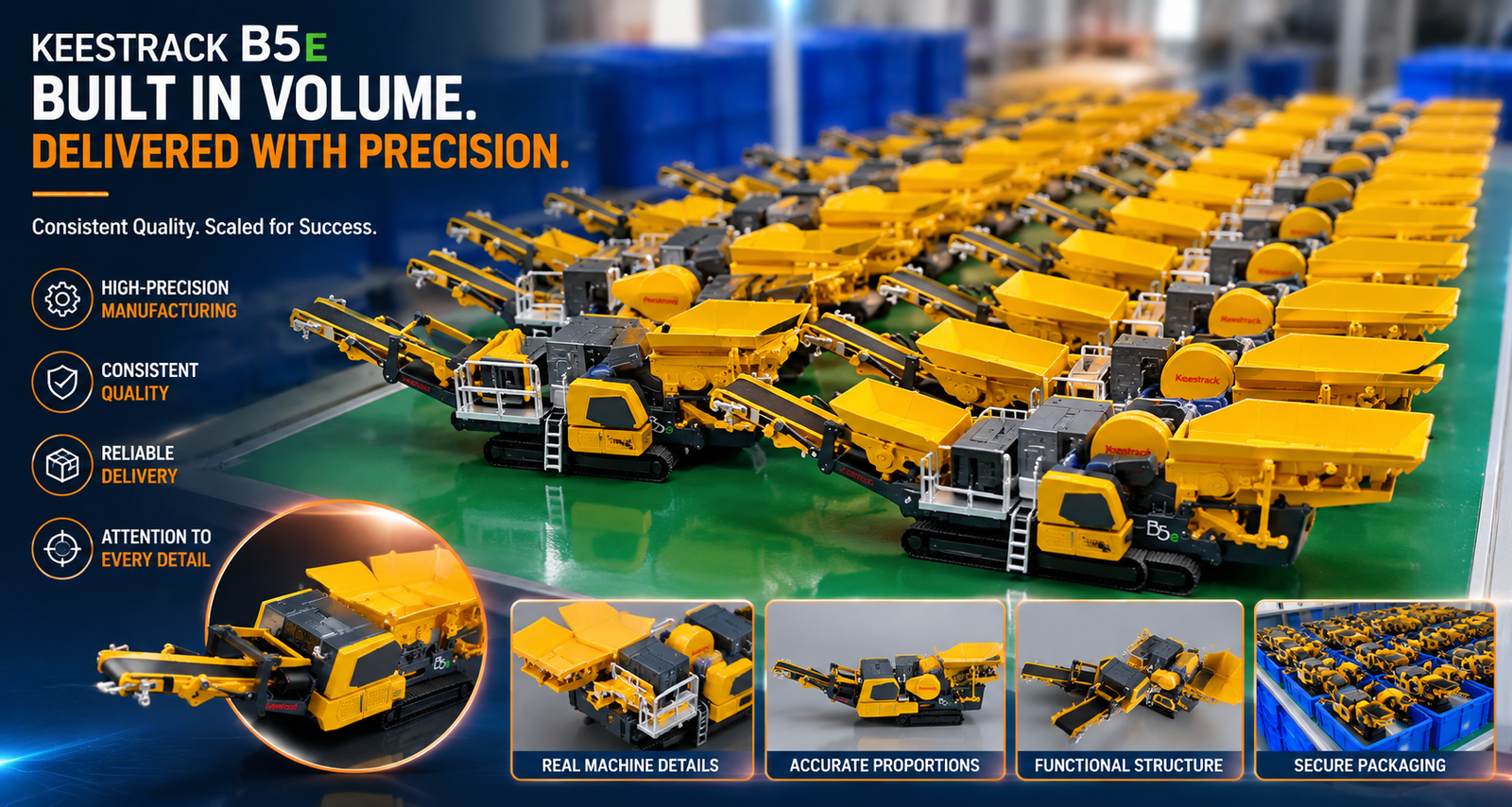

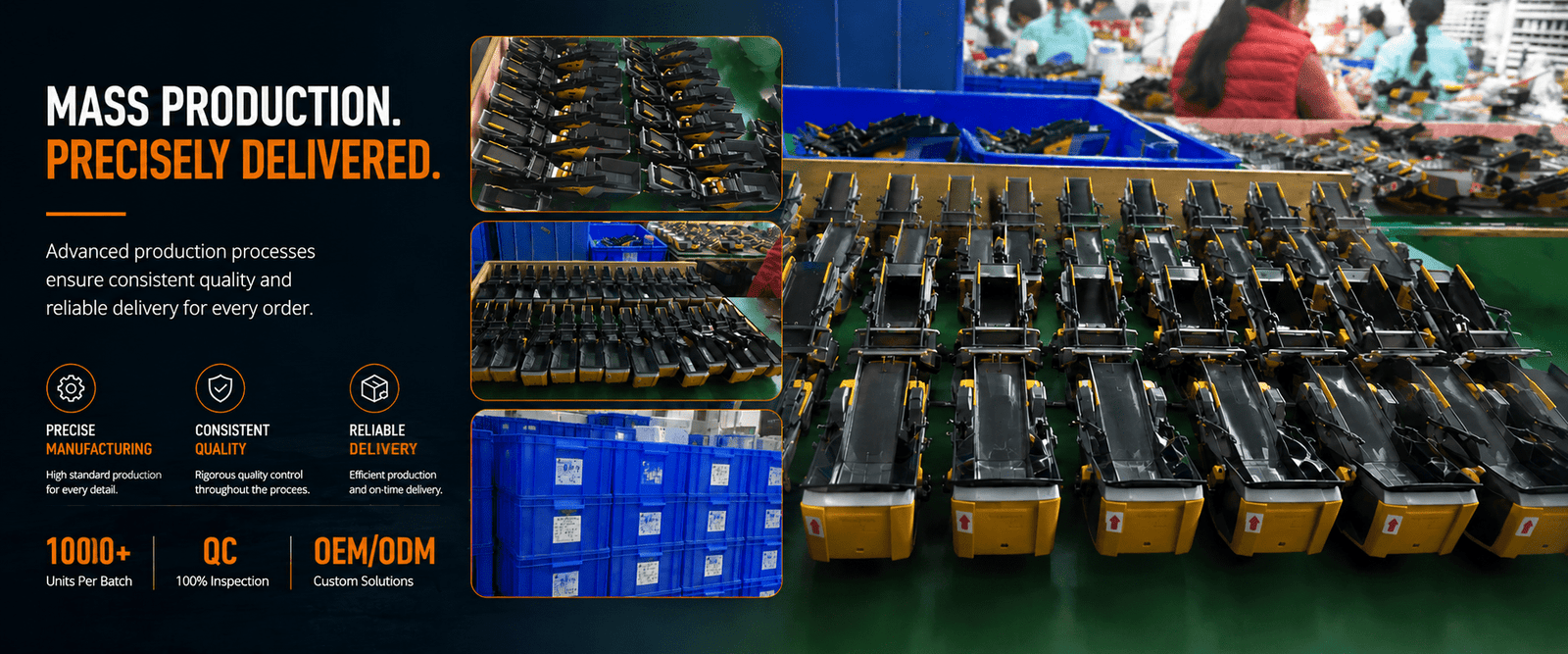

From Approved Prototype To Batch Delivery
Scale Artisan provides OEM custom construction machinery scale model manufacturing, including tooling, die casting, injection molding, painting, pad printing, assembly, packaging, and quality inspection.
Need A Custom Construction Machinery Scale Model?
Scale Artisan helps global equipment brands turn real machines into high-quality custom scale models for marketing, exhibitions, dealer programs, corporate gifts, and OEM brand promotion.
