Compact Scale, Complex Engineering
This 1:48 fire truck model combines a compact display format with a substantial 282-piece structure, functional mechanisms and a solid die-cast presence.
A Functional Replica of a Specialist Rescue Vehicle
Developed to reproduce the distinctive form and operating character of a 53-meter aerial ladder fire truck.

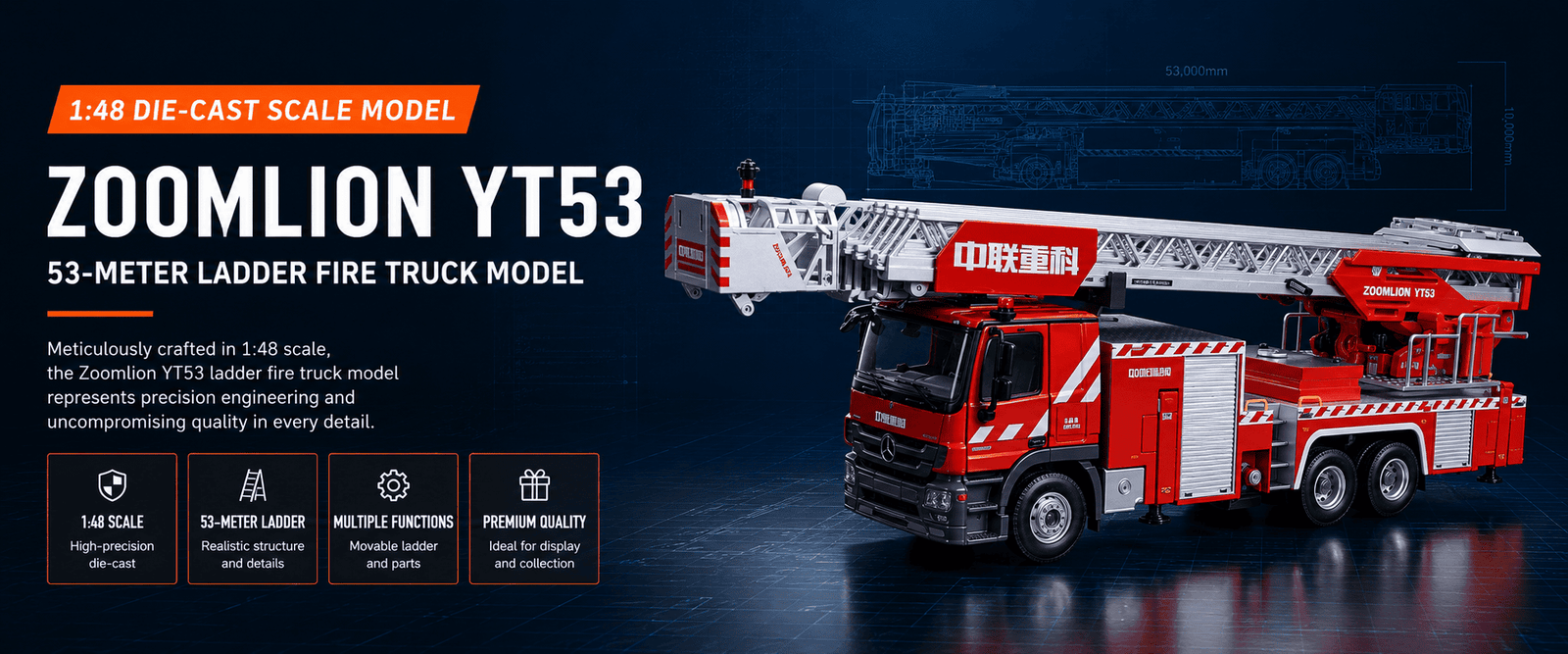

The 1:48 ZOOMLION YT53 ladder fire truck diecast scale model recreates the long telescopic ladder, Mercedes Actros-style cab, equipment body, rotating ladder platform and stabilizing system of the original rescue vehicle. The project required careful control of body proportions because the ladder assembly occupies most of the model’s overall length.
This is more than a static fire truck display model. The cab doors open, the front wheels steer, the model can roll forward and backward, the ladder platform rotates through 360 degrees, the ladder sections extend, and four support legs deploy from the body. These functions make the model suitable for product demonstrations, dealer showrooms, exhibitions and corporate display programs.
Producing a detailed 53 meter ladder fire truck scale model also requires reliable tooling and assembly control. The telescopic structure, moving joints, handrails, printed graphics and panel alignment must remain consistent during mass production. This project reflects the type of engineering required from an experienced OEM fire truck model manufacturer.
Project Development Priorities

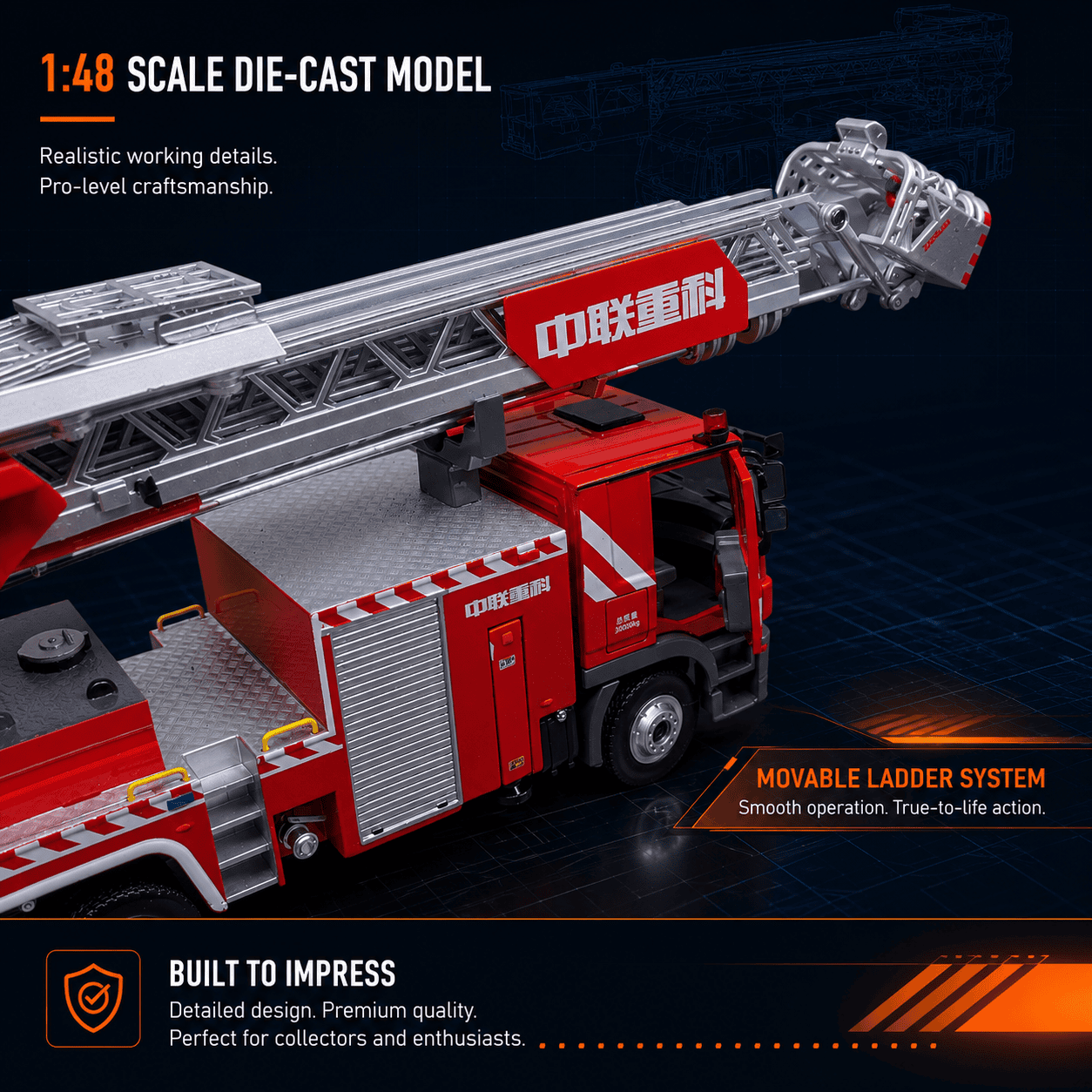

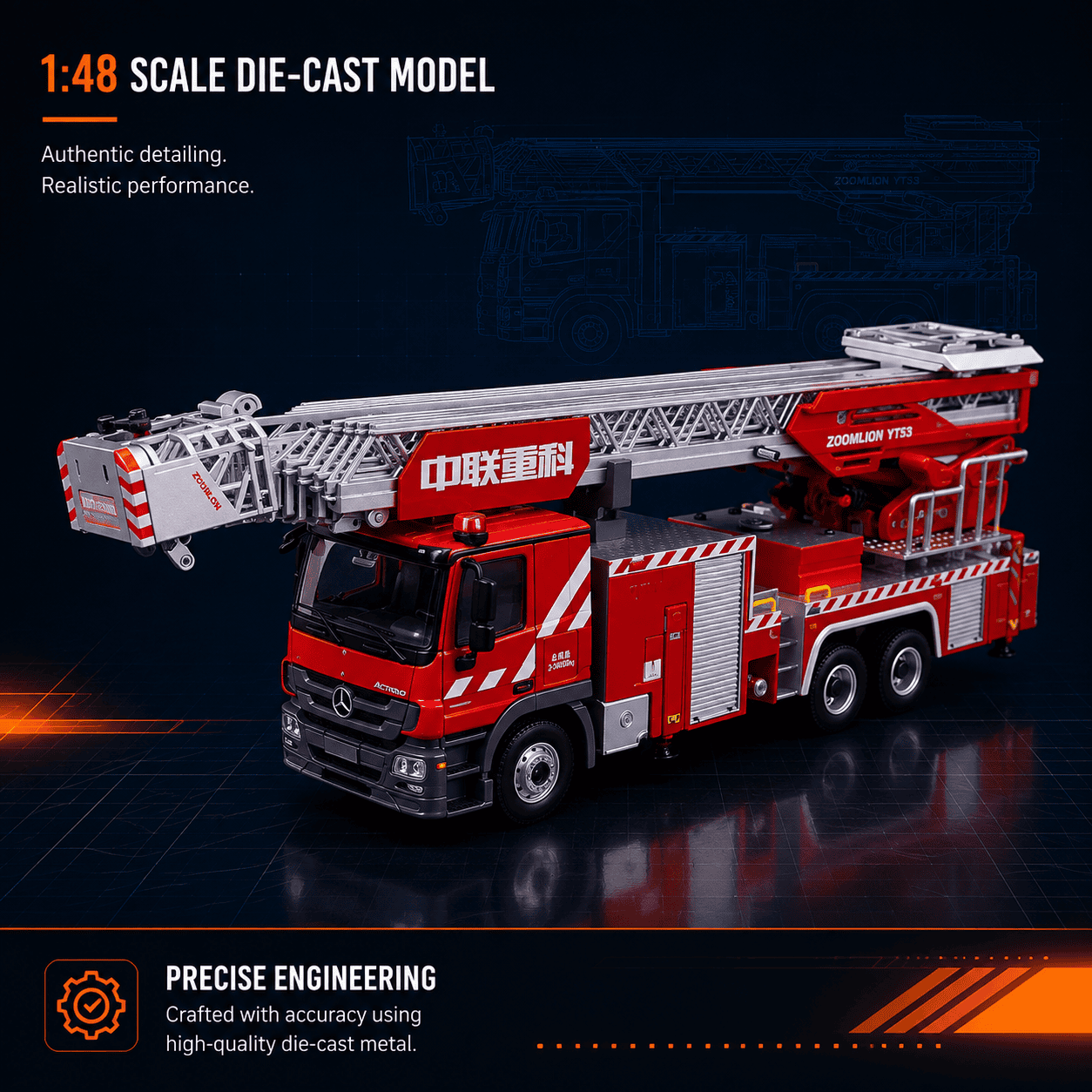

Designed to Look Accurate from Every Angle
Multiple views reveal the model’s balanced proportions, layered ladder structure, equipment compartments and branded surface details.

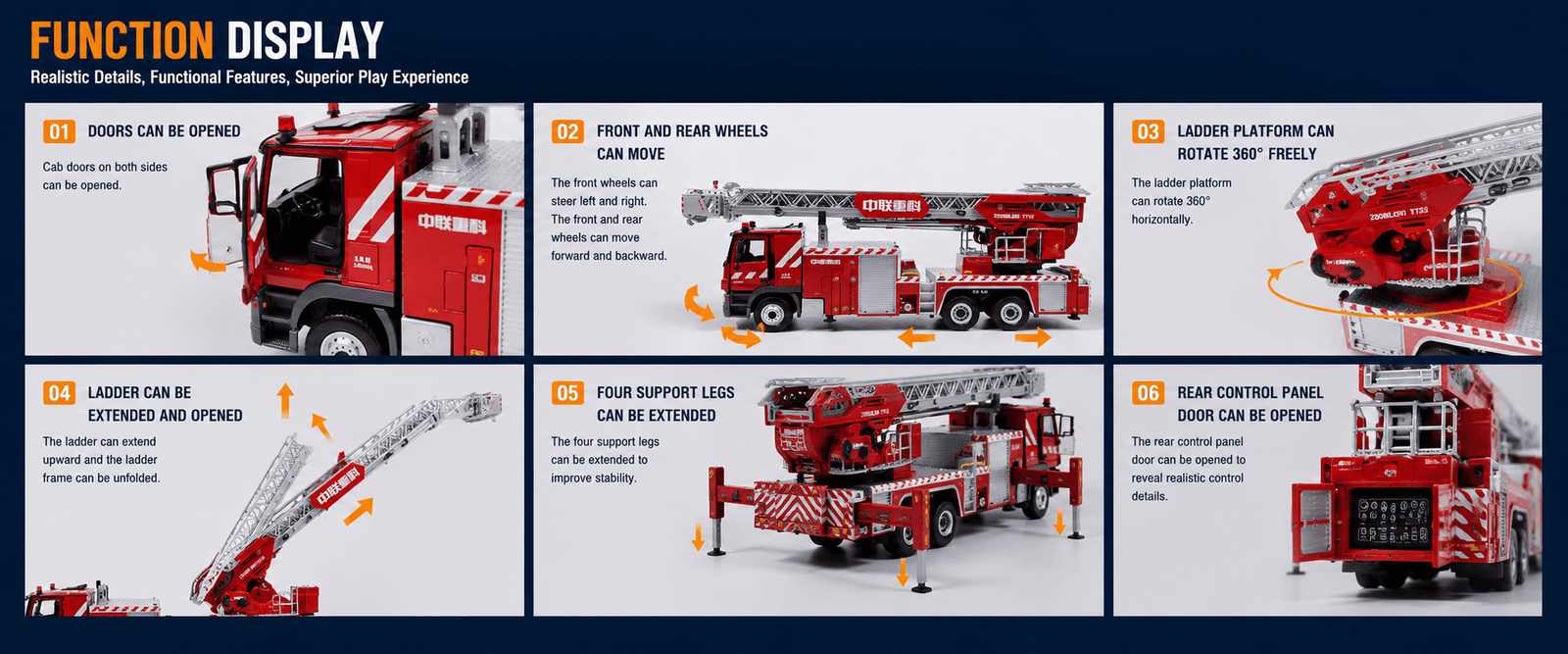

Moving Features that Support Realistic Demonstration
The model incorporates six functional areas that reproduce key operating movements of a specialist aerial ladder fire truck.
Opening Cab Doors
The cab doors open to reveal the driver area and add an interactive display function.
Rolling and Front-Wheel Steering
The front and rear wheels roll, while the front axle provides a steering function.
360° Ladder Platform Rotation
The complete red ladder platform above the rear body rotates through 360 degrees.

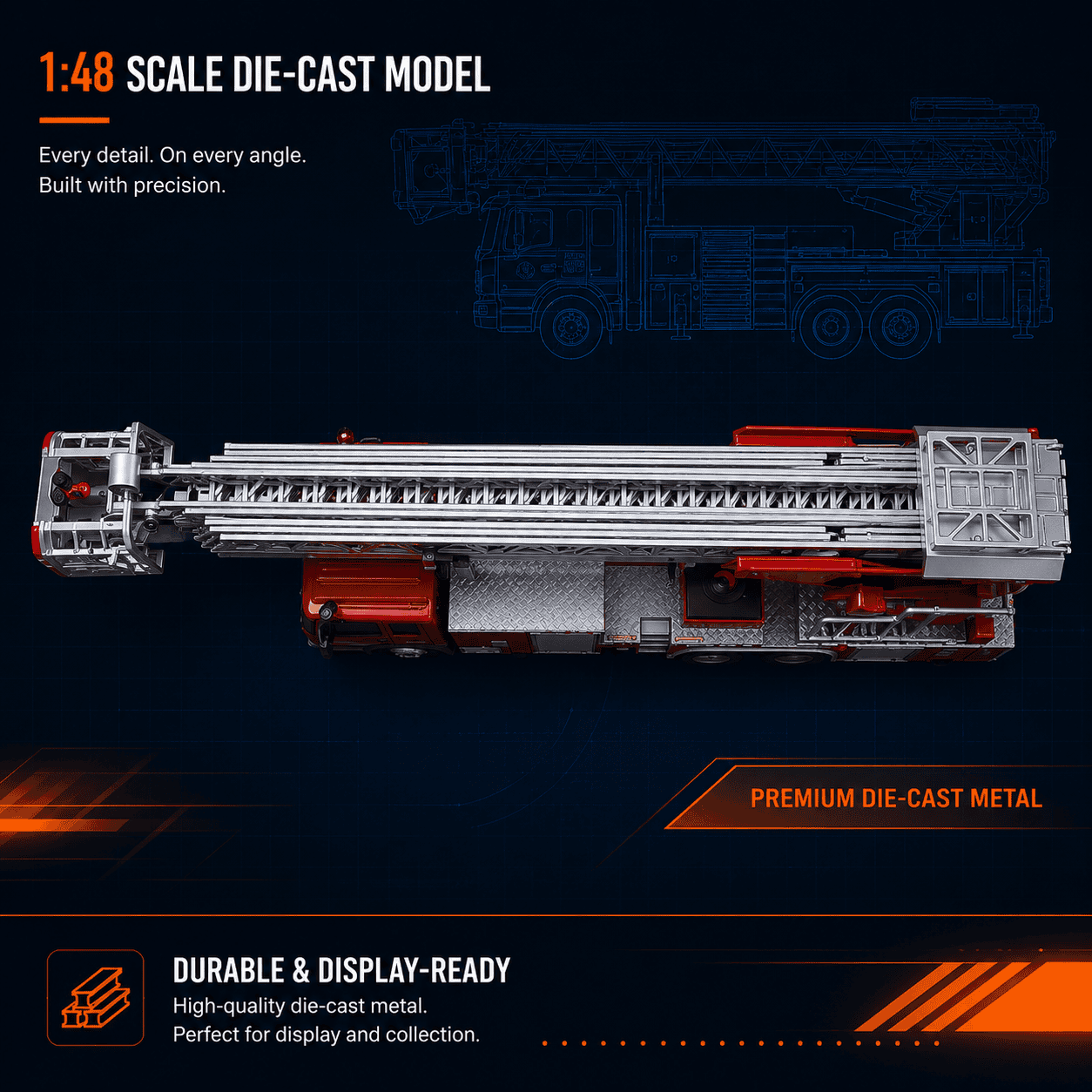

Extendable Ladder Sections
The nested ladder structure extends and opens to demonstrate the aerial rescue system.
Four Deployable Support Legs
Four stabilizer legs extend from the body to reproduce the operating stance of the vehicle.

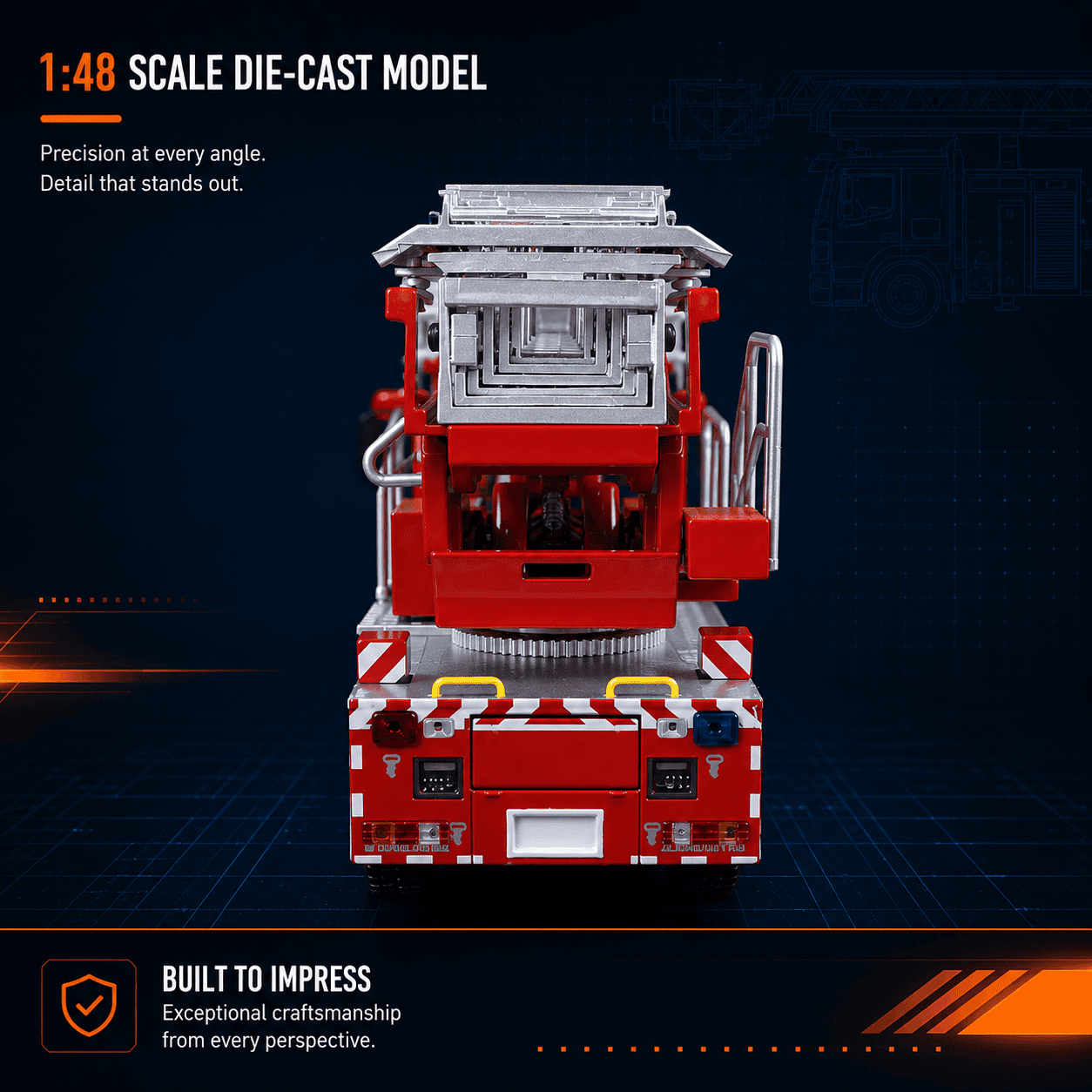

Opening Rear Control Compartment
The rear control-area door opens to reveal the detailed instrument panel inside.

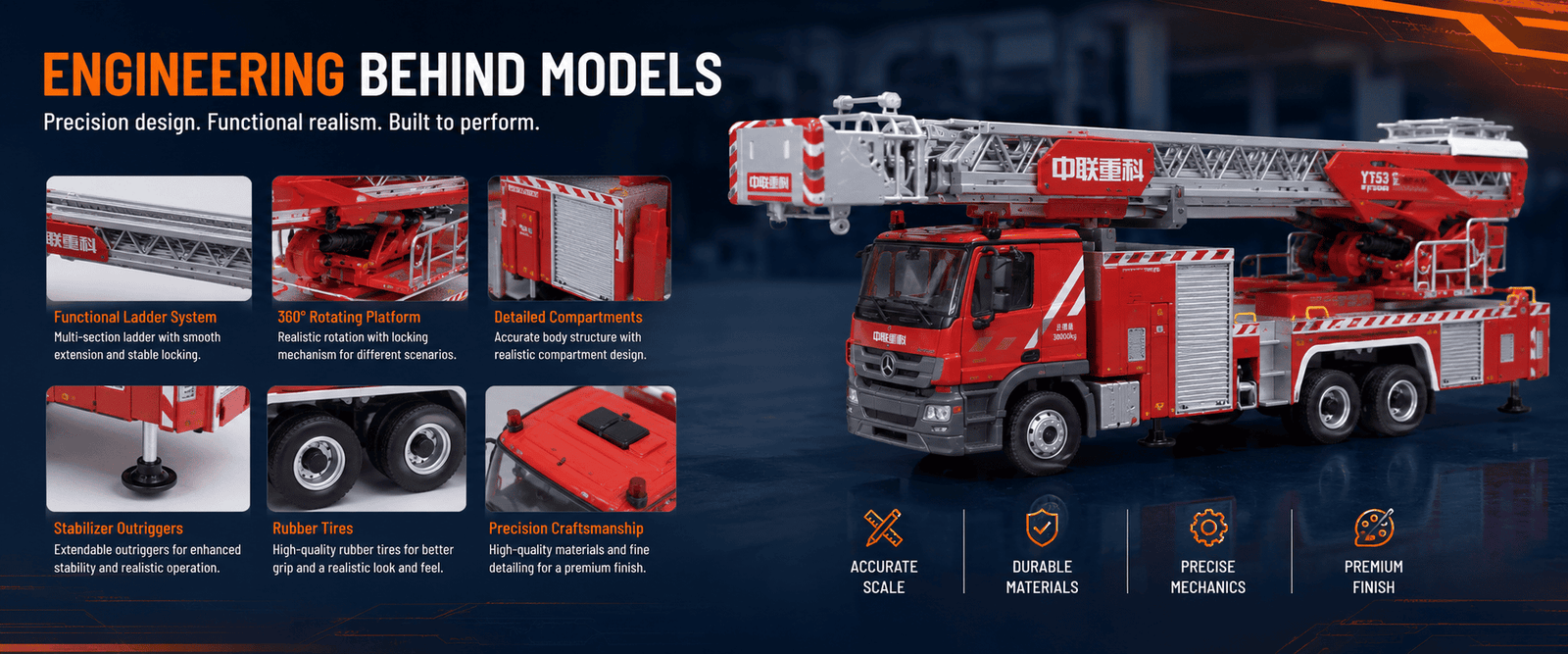

Engineering a Long Ladder into a Compact 1:48 Structure
The main development challenge was not simply reducing the vehicle’s size. It was preserving the ladder geometry, rotating base, moving connections and visual accuracy while maintaining practical assembly and repeatable mass-production quality.

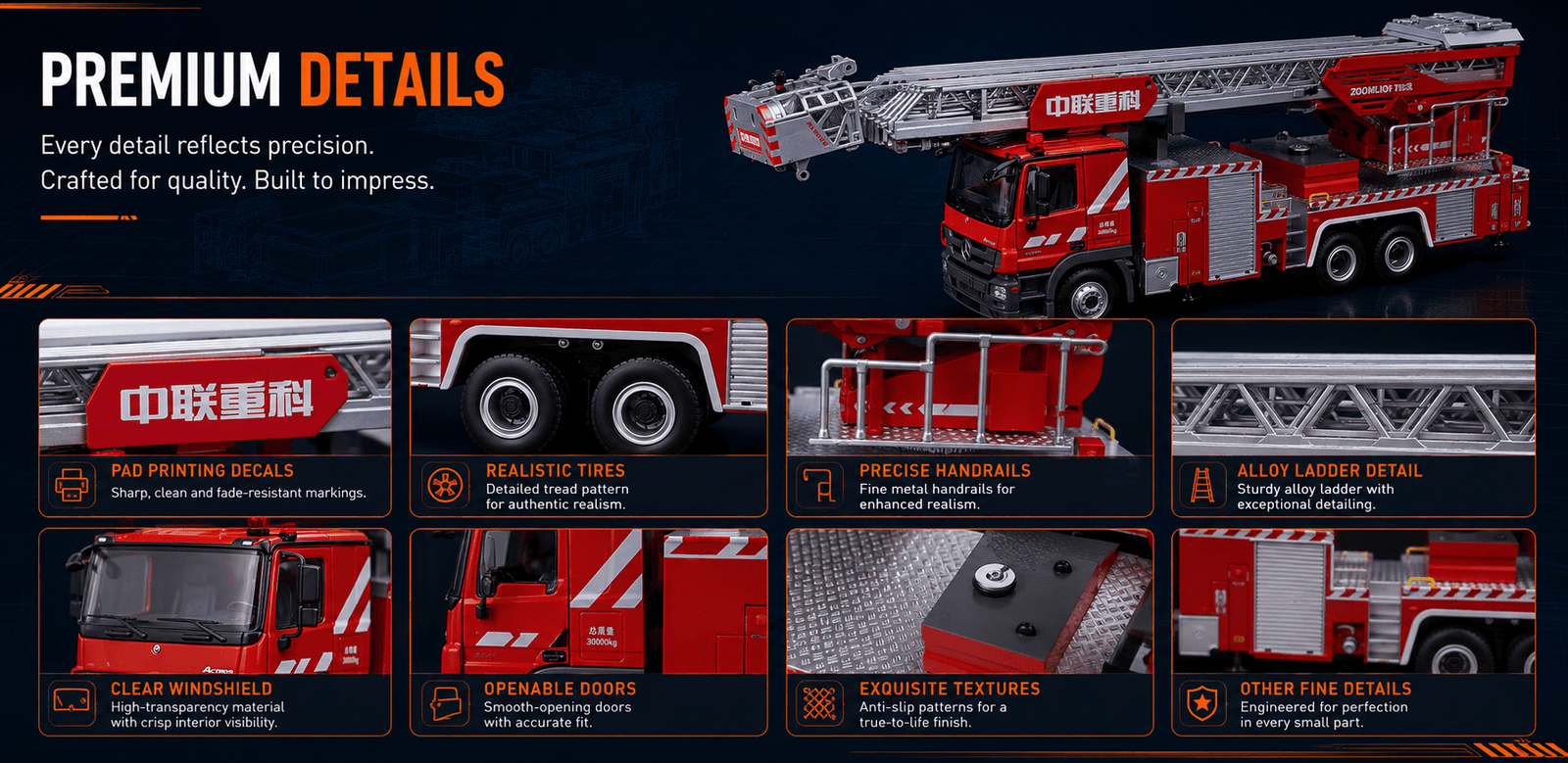

Small Components with High Visual Value
Printed markings, textured surfaces and fine structural parts help the model remain convincing when viewed closely in a showroom, exhibition or corporate display.
Pad Printing and Safety Graphics
Brand markings, model identification and red-and-white warning graphics are applied with attention to clarity, position and registration.
Ladder, Handrails and Access Details
The truss structure, rescue basket, handrails, steps and equipment access areas add depth to this high-detail fire truck scale model.
Tyres, Cab and Surface Textures
Tyre tread, wheel rims, transparent cab glazing, compartment shutters and diamond-plate textures strengthen the realistic finish.
A Substantial Display Model in a Practical Format

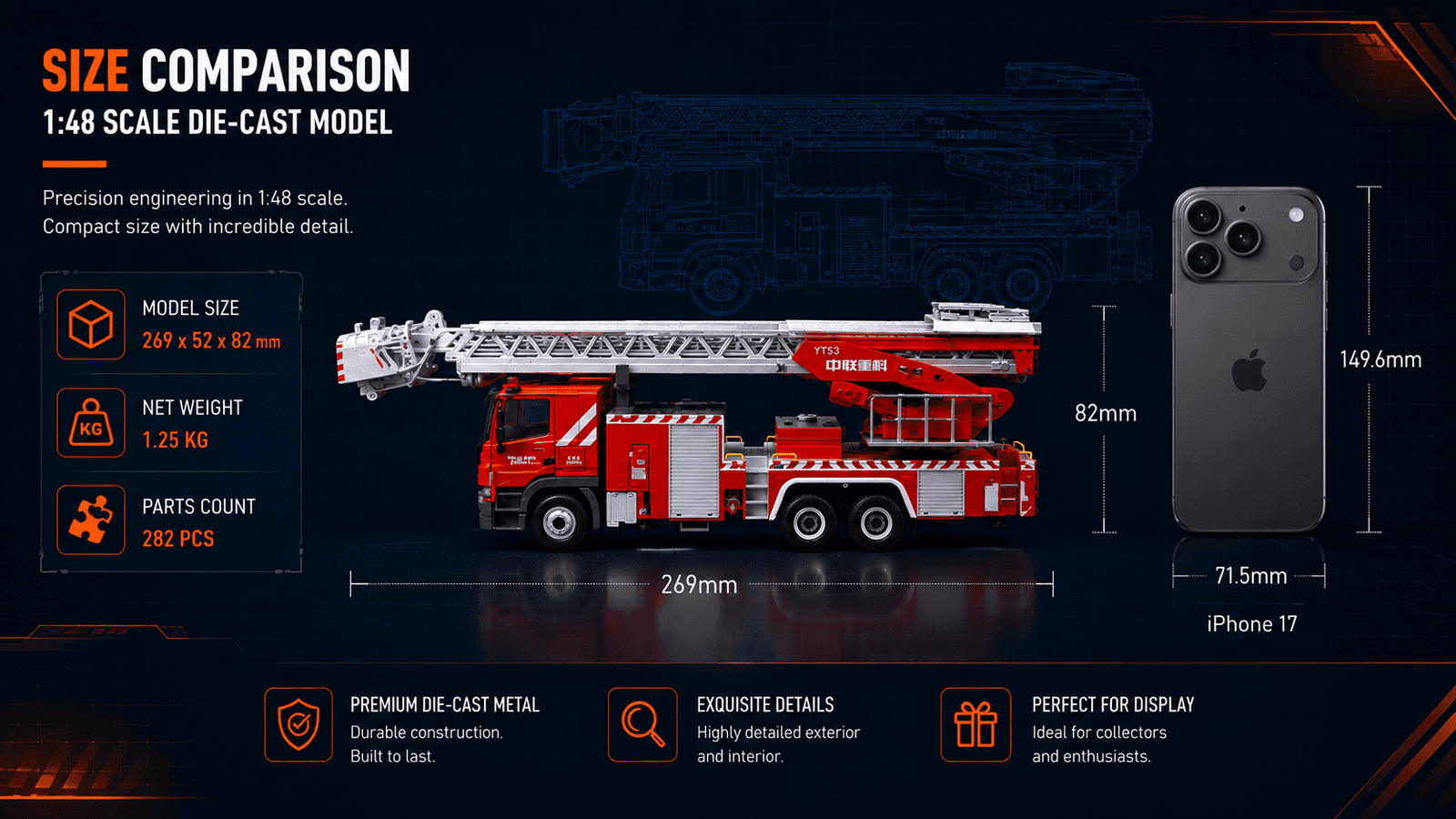

Measuring 269 × 52 × 82 mm and weighing 1.25 kg, the model has enough physical presence for dealer showrooms, trade shows, product launches, museum displays and corporate presentation areas without requiring excessive display space.
From Vehicle Data to Production-Ready Scale Model
A structured development process helps control proportions, moving functions, tooling feasibility and final production quality.
3D Data and Prototype
The customer’s real-vehicle 3D data is scaled and adjusted into model-production data. A prototype is then produced for confirmation of shape, details, functions and assembly.
- 3D data review and scale conversion
- Part separation and function planning
- Prototype production and customer approval
Tooling and Metal Sample
CNC machining, precision engraving and related equipment are used to manufacture production tooling. The metal sample should closely represent the approved mass-production model.
- Die-cast and injection tooling development
- Metal sample assembly and adjustment
- Colour, printing and function confirmation
Production, QC and Delivery
After sample approval, production proceeds through die-casting, injection moulding, painting, pad printing, assembly, function testing, final inspection, packaging and shipment.
- Component and surface-quality control
- Assembly and moving-function testing
- Final packaging and delivery preparation

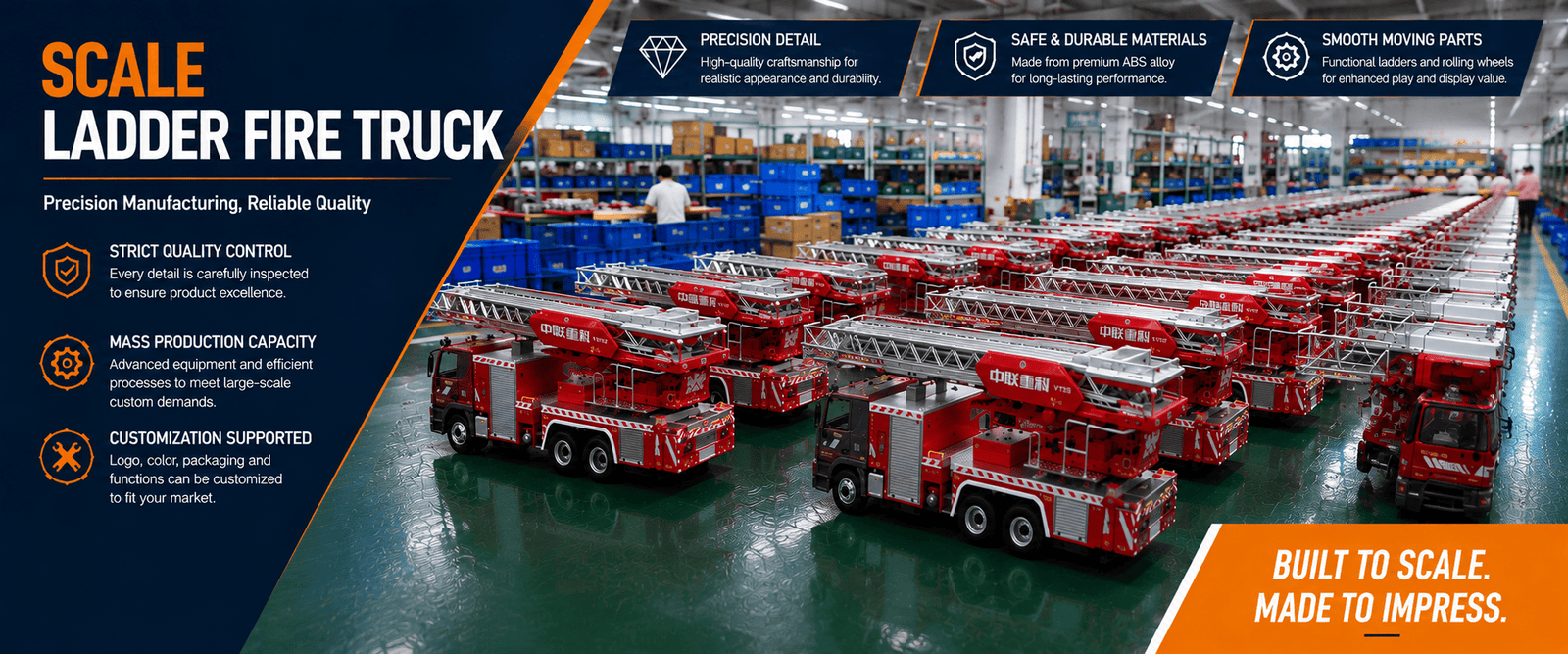

Built for Consistent OEM Production
The project moves from an approved sample into organized assembly and inspection, with model appearance and function checked throughout production.
Production Quality Control
Consistent quality depends on inspections being built into each production stage. Components, painted surfaces, printed graphics, panel alignment, ladder movement and packaging condition are checked before shipment.
Component Inspection
Die-cast and plastic parts are checked for visible defects, deformation, scratches, incomplete filling and unsuitable surface condition.
Paint and Printing Control
Colours are compared with approved samples, while logos and safety graphics are checked for clarity, position and registration accuracy.
Function and Appearance Testing
Doors, steering, wheels, rotating platform, extending ladder and stabilizer legs are tested together with overall fit and alignment.
Final Packaging Inspection
Each completed model is inspected before it is secured in its approved packaging for storage, transport and final delivery.
A Scale Model Designed to Support the Brand
A custom promotional fire truck model can communicate vehicle engineering more clearly than brochures alone and gives customers a physical product to examine and remember.
Dealer Showrooms and Product Launches
A functional replica helps sales teams explain vehicle structure, ladder operation and brand details when the full-size vehicle is not available indoors.
Trade Shows and Marketing Campaigns
The model can support exhibition displays, promotional events and product presentations as a compact representation of a specialist rescue vehicle.
Corporate Gifts and Licensing Programs
Branded packaging and presentation options can turn the model into a corporate gift, licensed product or limited collector release.
Museum and Corporate Displays
The detailed ladder structure and recognizable vehicle identity make the model suitable for company museums, visitor centres and permanent exhibition spaces.
Dealer and Distributor Promotions
An OEM display scale model gives regional sales partners a consistent branded item for customer meetings, distributor events and dealer presentations.
Collector and Commemorative Programs
A premium fire truck replica can document a vehicle program, celebrate a launch milestone or support a dedicated collector series.
Planning a Custom Fire Truck Model Project
These are the main questions involved when developing an OEM emergency vehicle scale model.
What information is needed to develop a custom fire truck model?
The preferred starting point is the real vehicle’s 3D or CAD data together with reference photographs, overall dimensions, target scale, required moving functions, branding files, packaging requirements and expected order quantity.
Can opening and moving functions be included?
Yes. Functions can be evaluated during the 3D engineering stage. For this project, the doors open, the wheels roll, the front wheels steer, the ladder platform rotates, the ladder extends, four stabilizers deploy and the rear control compartment opens.
Can other fire engines or emergency vehicle models be developed?
Yes. The same OEM development process can be applied to ladder trucks, pumpers, rescue vehicles, airport fire engines and other specialist emergency vehicles, subject to the available project data and required scale.
Can logos, colours and packaging be customized?
Yes. Vehicle colours, printed graphics, logos, display bases, gift boxes and protective packaging can be developed around the approved brand guidelines and target market. Compliance planning and third-party testing can also be coordinated when required.
Need an OEM Fire Truck Scale Model for Your Brand?
Share your project information with our team. We can review the product structure, target scale, required functions, packaging direction and expected production quantity before preparing the next development step.
